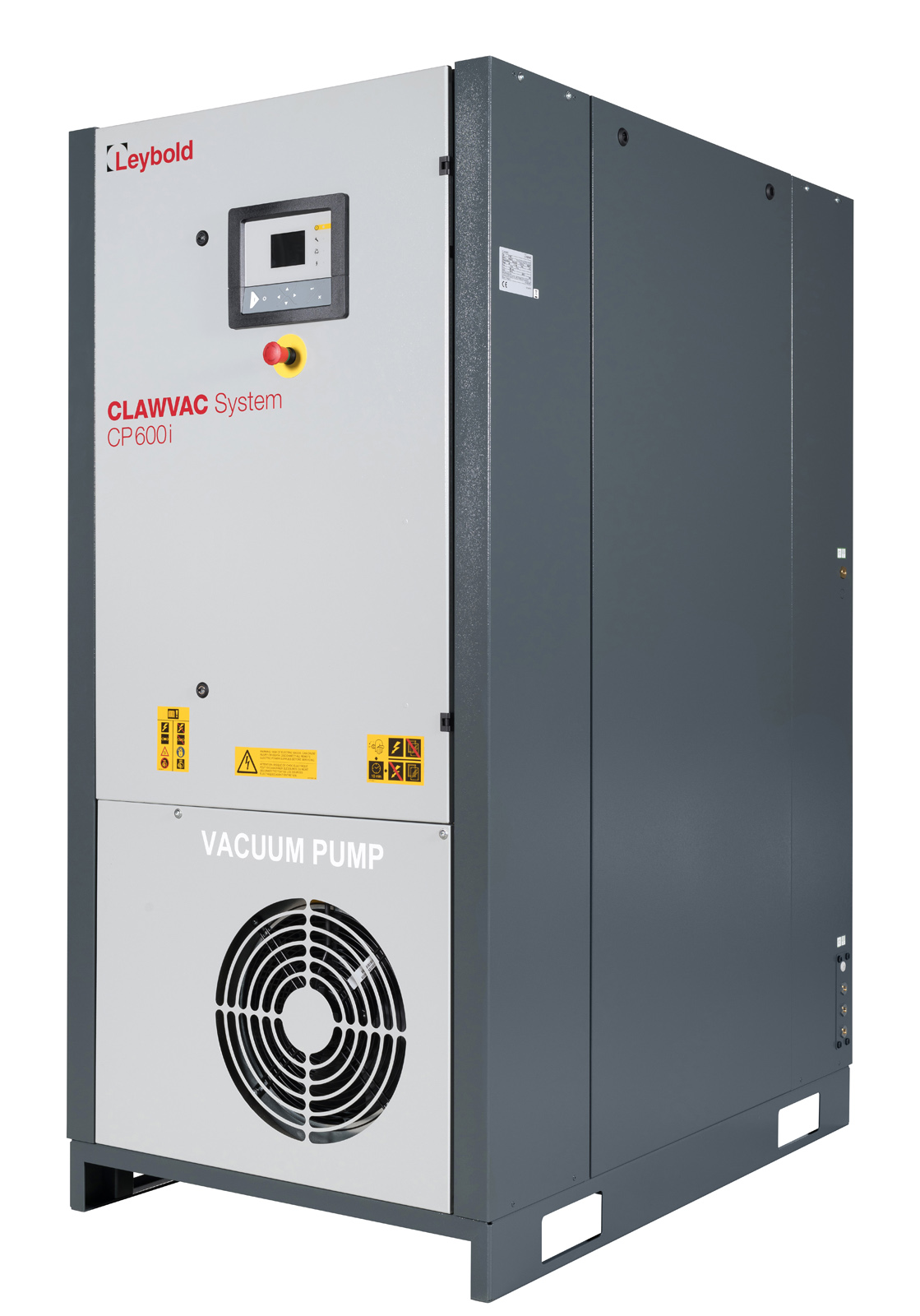

CLAWVAC System CP600i

CLAWVAC System CP600i

The compact and complete claw solution

The CLAWVAC system is a one-stop-shop solution, where Leybold’s reputation for building quality and superior products extends throughout its vacuum pump and systems range. CLAWVAC systems are ideal, if the application requires a high level of redundancy.

Complete & Dry Solution

Energy Efficient

• Only the required vacuum performance will be delivered

• Significant energy savings in comparison with a fixed speed solution

Smart

• A smartly designed, compact and easy accessible system

• An included controller which smartly controls the system and communicates with the customer

Sustainable

• Dry pumps with minimal impact on the environment

• Even more silent than one CP 300

Reliable & Redundant

• Constant logging of critical pump parameters

• Control principle creates a maximised redundancy, with a maximum uptime

Plug & Play

• Simple to install, connect and start

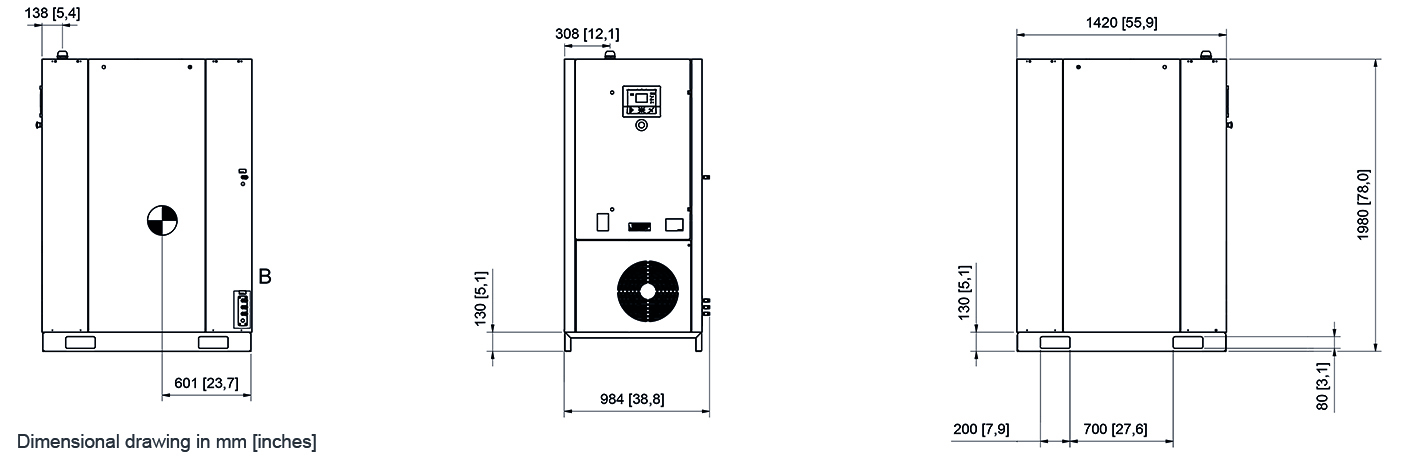

Features and Design

Design Principle
The CP i series is a dry, variable speed driven, multi CLAWVAC vacuum pump system.
Each element of the vacuum pump system is driven by an electric motor. The vacuum pumps are controlled by the Elektronikon controller which is fitted in the front door. An electrical cabinet comprises fuses, transformers, relays etc., and is located behind this front door.
The vacuum pumps use VSD (Variable Speed Drive) technology in combination with cascade switching of fixed speed units. This means: automatic adjustment of the motor speeds of the VSD lead pump in combination with cascade switching of fixed speed pumps, depending on the process demand.
The vacuum pumps are air cooled and are enclosed in a sound-insulated body work.

Technical Features
CLAWVAC Systems are mechanically optimized for each application:

• Strong internal chassis with fork lifting facilities to ease transportation and manoeuvring

• Integrated ‘Hot and cold’ enclosure design, to make the pump able to work continuously at every pressure in ambient temperatures until 40 °C

• Easy accessibility and removability of the pumps for simple service n Common manifolds for the inlet and outlet, connected to the single pumps

• Integrated exhaust silencer

• Non-return valves prevent from reverse rotation of the pumps and guarantee process isolation during pump standstill

• Condensate drain facilities

• Monitoring and control facilities

Process Compatibility
To ensure the durability and reliability for which Leybold is known for, the CLAWVAC System is equipped with corrosion resistance materials to be compatible with even the harshest applications. The CLAWVAC series vacuum pumps come with stainless steel claws and a resistive and durable coating for the pumping chamber. This is based on years of extensive development and endurance testing. It also features a simple but effective labyrinth sealing arrangement for long life and durability.

Maintainability
The CLAWVAC System is a cleverly designed pump system. That counts also for its maintainability. Its design principles offer a simple, long life and durable pump with a very low maintenance need. Access to the pumps is easy via the removable service panels. Additionally the up-time is maximised, as in the CLAWVAC System pumps can easily be removed, maintained or replaced by individually isolating, disconnecting and sliding them out from the main chassis and whilst maintaining, the CLAWVAC System can keep on running.

• Product Brochure (711.98 Kb)
• Product Overview (9.83 Mb)
• Declaration of Contamination (HS1) (531.93 Kb)
• Declaration of Contamination (HS2) (602.15 Kb)
• Service catalogue (1.71 Mb)
