COOLVAC 60000

COOLVAC 60000

Inlet connection: DN 1250 ISO-F
Please login to request a quote.

Control:

COOLVAC 60000

COOLVAC 60000 iSL – DN 1250 ISO-F

Cryogenic Pump with automatic control and regeneration
2 built in cold heads COOLPOWER 5/100i and 2 units COOLPOWER 140i
4 COOL.DRIVE i control units
High Vacuum flange DN 1250 ISO-F - Fore Vacuum flange DN 63 ISO-K
2 safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF for heaters, temperature monitoring and feedthroughs
TTR 91 pressure transmitter – DN 63 ISO-K angle valve
Pumping speed N2 57.000 l/s - H2O 180.000 l/s
Capacity N2 9.000 bar*l - H2 150 bar*l



COOLVAC 60000 iBL – DN 1250 ISO-F

Cryogenic Pump without electronics
2 built in cold heads COOLPOWER 5/100i and 2 units COOLPOWER 140i
High Vacuum flange DN 1250 ISO-F - Fore Vacuum flange DN 63 ISO-K
2 safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF
Temperature sensor 2nd stage
Pumping speed N2 57.000 l/s - H2O 180.000 l/s
Capacity N2 9.000 bar*l - H2 150 bar*l

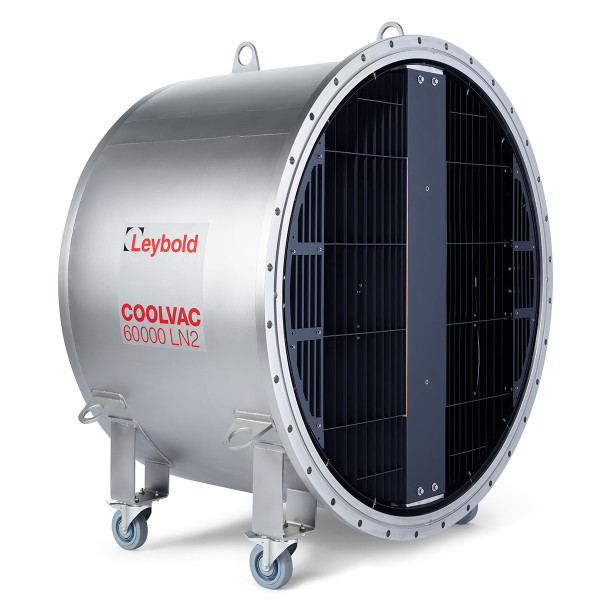

COOLVAC 60000 iLN2 – DN 1250 ISO-F

Cryogenic Pump with liquid nitrogen cooled shield
Built in cold head COOLPOWER 10 MDi & COOL.DRIVE i control unit
High Vacuum flange DN 1250 ISO-F - Fore Vacuum flange DN 63 ISO-K
Safety valve at flange DN 40 KF
Further flanges DN 40 KF and DN 16 KF for temperature monitoring with Si diode and Pt 100
Pumping speed N2 57.000 l/s - H2O 180.000 l/s
Capacity N2 9.000 bar*l - H2 150 bar*l
